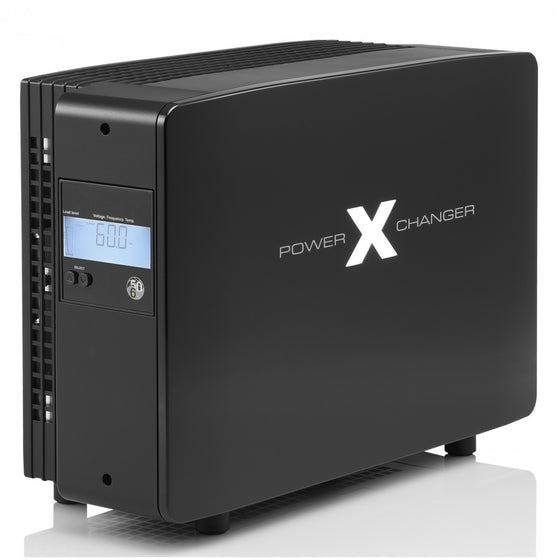

The PowerXchanger Designer Series X-15 1800W (15 Amps, Black) is the worldâ€™s most powerful Voltage and Frequency converter available for personal use. While being small and portable, it regenerates 15 Amps of power that exceed in quality and regulation of a dual socket home outlet.
The X-15 is the worldâ€™s most powerful, yet portable Voltage and Frequency converter available for personal use while matching the power of a dual socket home outlet.
X-15 is a full-featured sine wave output regenerator that produces new, clean, and constant AC power; eliminating line noise and ensuring optimum performance. It is capable of providing 120v~60 Hz electricity for running household appliances such as refrigerators, gas stoves, washers, gas dryers, microwaves, household power tools, small appliances and even commercial vacuum cleaners.
With all its sophistication, the X-15 is the same size and weight of a typical amplifier or game console.
When location and space is an issue, the detachable legs, included wall mounting kit and XchangeÂ® Extension Outlet allow this unit to be placed virtually anywhere â€“ up to 6ft away from the appliance itâ€™s meant to power!
The X-15 is available in 2 colors.
With sophisticated electronics including power factor correction, as well as input and output EMI and RFI filters, it produces continuous power at over 92% efficiency and with output Harmonic distortion below 3%. High levels of regulation ensure 120v~60Hz output with fluctuations below Â± 2%, making it the ideal conversion device for taking high-end audio and home theater equipment overseas.
Power for High Performance Audio
To the audiophile, the X-15 functions as a Regenerator with Power Factor Correction (PFC). It is a premiere choice for powering audio equipment to satisfy the most demanding audiophiles. With its clean sinewave output (typically < 1%THD) and with virtually no change in amplitude due to input voltage fluctuations and output load transients, audio equipment will always function with optimal performance. Because the output of the X-15 regulates so well, another advantage to the audiophile is that other equipment powered by the X-15, such as HDTVs and DVRs, will not introduce noise or distortion to the audio output via the common power connection.
Additionally excellent EMI filtering on the input and output of the X-15 prevents RFI noise from being injected into the audio output.
Another important feature for audiophiles is the high output surge current capacity (150 Amps) of the X-15. This capability to source high surge currents with minimal distortion of the output voltage results with crisp high volume audio transients.
Frequently overlooked is the importance of PFC for noise free operation of audio equipment. Because PFC eliminates voltage and current distortions on the input power leads to the X-15, this potential source of audio noise is virtually non-existent.
The X-15 has sealed solid-state electronics that protect against humidity and dust, ensuring reliability and a long product life. An External Fan automatically cools the sealed electronics whenever the load exceeds 15 Amps or when environmental factors exceed operating temperature.
Not only will electrical equipment perform better, but the X-15 also acts as an advanced voltage regulator, which fully protects equipment against voltage irregularities, such as under INPUT voltage as low as 180Vac and over voltage as high as 265Vac and provides an appliance with inrush surge protection of up to 150 Amps.
Audible alarms notify overload, short circuit and temperature while in addition; an external LED provides visual notification of overload and temperature status. A built-in LCD Display provides on-demand operational data such as connected load levels, remaining available capacity, input voltage, output converted voltage, output converted frequency, and internal device temperature.
The X-15 not only meets the stringent standards of the UL and FCC in the USA, but also meets International Safety Standards.
Sophisticated Voltage Regulator
Short Circuit Protection
Power Factor Correction (PFC)
Input EMI and RFI Filters
Output EMI and RFI Filters
Low Harmonic Distortion
Sealed, Solid State Electronics
External Cooling Fan
Led Status Indicator
Wall Mount Option with Included Kit
Desktop unit with Removable Legs
Includes XchangeÂ® Extension Outlet
Wall Mount, Extension Outlet, (4) Input Cord Type F, G, I, M
Output Current-Amps @ 60Hz
Â± 2% From Setpoint
60Hz (Auto-Synchronized to Mains)
Output Distortion (Resistive Load)
Output Distortion (Reactive Load)
Non-Linear Peak Current for 30 sec.
Total Harmonic Distortion
< 3% at 100% Linear Load
Output EMI Filter
150Khz - 30Mhz
Output RFI Filter
30Mhz - 1000Mhz
Over Current Protection
Over Load Alarm Level: 100% ~ 119%
(alarm after 1 minute delay, shutdown after 1 minute alarm)
Over Load Shutdown Level: 120%
(shutdown after 2 second delay)
Pulsating Type, 40A Peak
Auto-Restart time: 30 seconds
Maximum Continuous Load
Maximum Peak Load
46Hz Ì´ 65Hz
Full-Time EMI/RFI Filtering
Input EMI Filter
Input RFI Filter
30Mhz - 1000Mhz
Over Current Protection
Over Current Protector
180Vac Ì´ 265Vac
Over Load Alarm:
Continuous alarmShort-Circuit Alarm:
1 beep every 2 secondsThermo Alarm:
Every other 2 seconds, 32 beeps in 2 seconds
Inrush Surge Capacity
Voltage Interruption Ride Through
Display Input Voltage, Output Voltage, Output Frequency, Temperature, Load Level
X blinks every 4 secondsOver-Temperature:
X blinks every 2 seconds
Environmental and Safety
Up to 2000 Meters:
0Â° to 45Â°C
(32Â°F to 113Â°F)
-15Â°C to 60Â°C
(5Â°F to 140Â°F)
5 â€“ 95% Non-Condensing
0 ~ 3000 Meters
External Cooling Fan Control
Auto on/off, controlled by heat sink temperature & load level
41.50 Ã— 27.50 Ã— 16.50 cm
16.34 Ã— 10.83 Ã— 6.50 in
Net Product Weight
58.00 x 35.00 x 58.00 cm
22.83 x 13.78 x 22.83 in
2 Years, Full Replacement
Quality Control Standard
UL-ULus (CCN: QQFU/7) Power Units Other Than Class 2,
UL 1012, Seven Edition, October 14, 2008
UL-cUL: CAN/CSA-C22.2 No. 107.1-01, September, 2001
DEMKO-CB IEC60950-1:2005+A1:2009+A2:2013 (Ed. 2.2)
TUV/SUD-CB IEC 60335-1:2010+A1:2013 (Ed. 5.1)
FCC Part 15: subpart B
