Remote Installation Kit.
Input Power Cords, Type F, Type G, Type I, Type M.
Download / View Product Brochure
Download / View User’s Manual

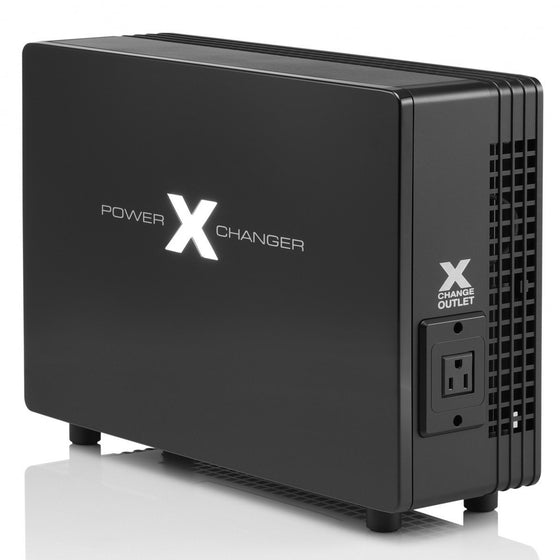

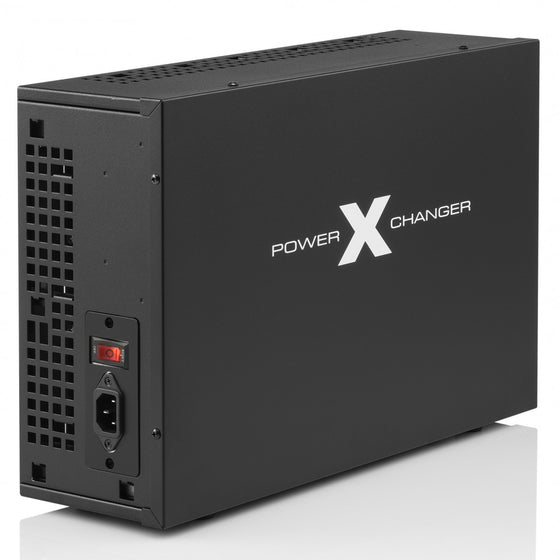

The Xm-10 is the second most powerful Voltage and Frequency converter in the series. Providing 10 Amps of regenerated, clean, 120v~60 Hz power, it includes all of the same technical features of the larger capacity Xm-15. Perfect for powering multiple devices and appliances whose total load does not exceed 10 Amps.
Xm-10 is a full-featured sine wave output regenerator that produces new, clean, and constant AC power; eliminating line noise and ensuring optimum performance. It is capable of providing 120v~60 Hz electricity for running household appliances such as refrigerators, gas stoves, washers, gas dryers, microwaves, household power tools, and small appliances.
This unit is designed to be Wall Mounted remotely in a convenient location and utilizing the supplied Input Receptacle wired to the two supplied Double Outlets at the points of use.
The Xm-10 features a hardened metal casing.
With sophisticated electronics, including power factor correction, as well as input and output EMI and RFI filters, it produces continuous power at over 92% efficiency and with output Harmonic distortion below 3%. High levels of regulation ensure 120v~60 Hz output with fluctuations below ± 2%, making it the ideal conversion device for taking high-end audio and home theater equipment overseas.
Power for High Performance Audio
To the audiophile, the Xm-10 functions as a Regenerator with Power Factor Correction (PFC). It is a premiere choice for powering audio equipment to satisfy the most demanding audiophiles. With its clean sinewave output (typically < 1%THD) and with virtually no change in amplitude due to input voltage fluctuations and output load transients, audio equipment will always function with optimal performance. Because the output of the Xm-10 regulates so well, another advantage to the audiophile is that other equipment powered by the Xm-10, such as HDTVs and DVRs, will not introduce noise or distortion to the audio output via the common power connection.
Additionally excellent EMI filtering on the input and output of the Xm-10 prevents RFI noise from being injected into the audio output.
Another important feature for audiophiles is the high output surge current capacity (150 Amps) of the Xm-10. This capability to source high surge currents with minimal distortion of the output voltage results with crisp high volume audio transients.
Frequently overlooked is the importance of PFC for noise free operation of audio equipment. Because PFC eliminates voltage and current distortions on the input power leads to the Xm-10, this potential source of audio noise is virtually non-existent.
The Xm-10 has sealed, solid-state electronics that protect against humidity and dust, ensuring reliability and a long product life. An External Fan automatically cools the sealed electronics whenever the load exceeds 10 Amps or when environmental factors exceed operating temperature.
Not only will electrical equipment perform better, but the Xm-10 also acts as an advanced voltage regulator, which fully protects equipment against voltage irregularities, such as under INPUT voltage as low as 180Vac and over voltage as high as 265Vac and provides an appliance with inrush surge protection of up to 150 Amps.
Audible alarms notify overload, short circuit and temperature.
The Xm-10 not only meets the stringent standards of the UL and FCC in the USA, but also meets International Safety Standards.

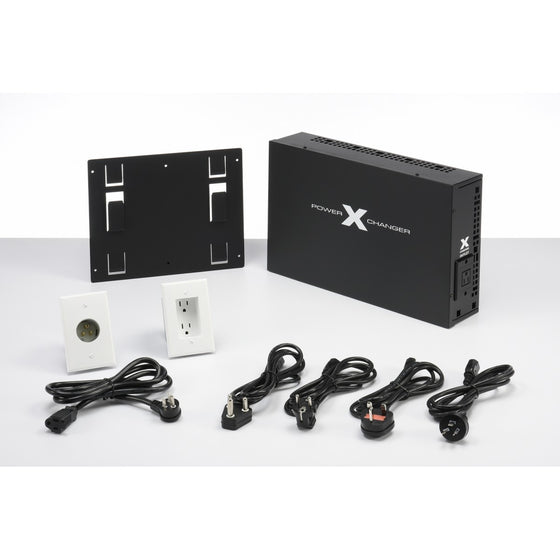

Wall Mount, Power Inlet,(1) Power Outlet, Power Connection Cord, (4) Input Cord Type F, G, I, M
|Output Current-Amps @ 60Hz||10A|
|Voltage Regulation||± 2% From Setpoint|
|Output Frequency||60Hz (Auto-Synchronized to Mains)|
|Voltage Waveform||Sine Wave|
|Output Distortion (Resistive Load)||<2%|
|Output Distortion (Reactive Load)||<3%|
|Non-Linear Peak Current for 30 sec.||40A|
|Total Harmonic Distortion||< 3% at 100% Linear Load|
|Output EMI Filter||150Khz – 30Mhz|
|Output RFI Filter||30Mhz – 1000Mhz|
|Over Current Protection||Over Load Alarm Level: 100% ~ 135%
(alarm after 1 minute delay, shutdown after 1 minute alarm)
Over Load Shutdown Level: 136%
(shutdown after 2 second delay)
|Short Circuit||Pulsating Type, 40A Peak
Auto-Restart time: 30 seconds
|Maximum Continuous Load||1200W|
|Maximum Peak Load||2000W|
|Input Frequency||46Hz ̴ 65Hz|
|Noise Filtering||Full-Time EMI/RFI Filtering|
|Input EMI Filter||150Khz -30Mhz|
|Input RFI Filter||30Mhz – 1000Mhz|
|Over Current Protection||By Re-Settable
Over Current Protector
|Voltage Range||180Vac ̴ 265Vac|
|Power Factor||> 0.95|
Over Load Alarm:
Continuous alarmShort-Circuit Alarm:
1 beep every 2 secondsThermo Alarm:
Every other 2 seconds, 32 beeps in 2 seconds
|Inrush Surge Capacity||<150A|
|Voltage Interruption Ride Through||30mS|
|Environmental and Safety|
|Operating Temperature||Up to 2000 Meters:
0° to 45°C
(32°F to 113°F)
|Transit/Storage Temp||-15°C to 60°C
(5°F to 140°F)
|Relative Humidity||5 – 95% Non-Condensing|
|Operating Altitude||0 ~ 3000 Meters|
|Moisture Sensitivity||Sealed Electronics|
|External Cooling Fan Control||Auto on/off, controlled by heat sink temperature & load level|
|41.50 × 26.50 × 12.50 cm
16.34 × 10.43 × 4.92 in
|Net Product Weight
|58.00 x 30.00 x 54.00 cm
22.83 x 11.81 x 21.26 in
|Shipping Weight||18.14 kgs
|Warranty||2 Years, Full Replacement|
|Quality Control Standard||ISO9001|
|International Approvals||UL-ULus (CCN: QQFU/7) Power Units Other Than Class 2,
UL 1012, Seven Edition, October 14, 2008
UL-cUL: CAN/CSA-C22.2 No. 107.1-01, September, 2001
DEMKO-CB IEC60950-1:2005+A1:2009+A2:2013 (Ed. 2.2)
TUV/SUD-CB IEC 60335-1:2010+A1:2013 (Ed. 5.1)
FCC Part 15: subpart B
