Extension Outlet and Wall Mount.
Input Power Cords, Type F, Type G, Type I, Type M.
Download / View Product Brochure
Download / View User’s Manual
The X-5 is the smallest in this series of Voltage and Frequency converters. Providing 5 Amps of regenerated, clean, 120v~60Hz power, it includes all of the same technical features of the larger capacity X-10 and X-15. Perfect for powering a single appliance or multiple devices whose total load does not exceed 600 Watts (5 Amps).
X-5 is a full-featured sine wave output regenerator that produces new, clean, and constant AC power; eliminating line noise and ensuring optimum performance. It is capable of providing 120~60Hz electricity for running a single household appliance or devices whose load does not exceed 600W (5 Amps).
This unit is designed to be Wall Mounted in a convenient location, saving valuable counter space and providing it with the required ventilation. The optional Xchange® Extension Outlet allows for installation up to 6ft away from the appliance it’s meant to power.

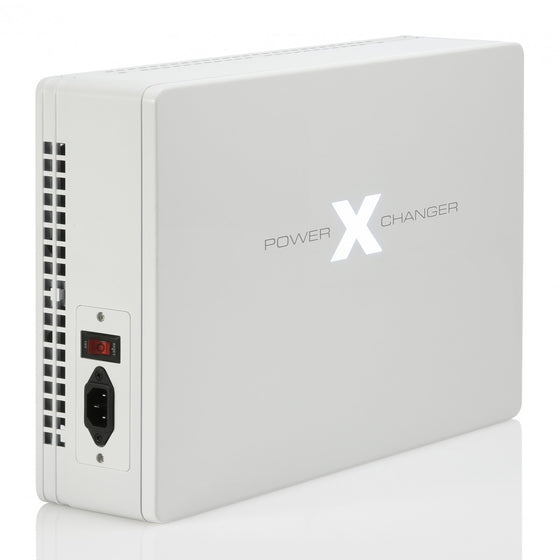

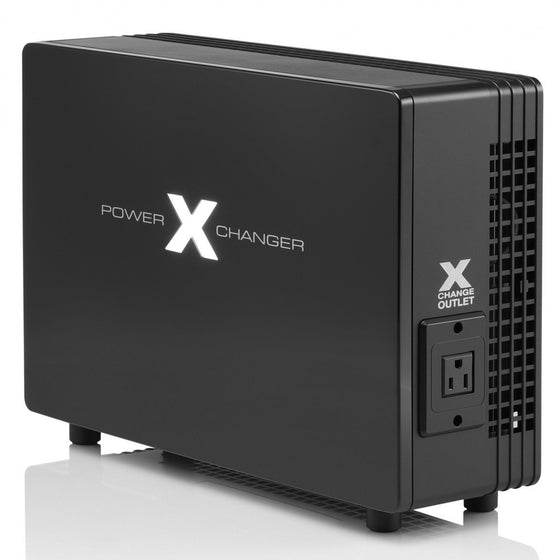

The X-5 is available in 2 colors, Black or White
With sophisticated electronics including power factor correction, as well as input and output EMI and RFI filters, it produces continuous power at over 92% efficiency and with output Harmonic distortion below 3%. High levels of regulation ensure 120~60Hz output with fluctuations below ± 2%, making it the ideal conversion device for taking high-end audio and home theater equipment overseas.
Power for High Performance Audio
To the audiophile, the X-5 functions as a Regenerator with Power Factor Correction (PFC). It is a premiere choice for powering audio equipment to satisfy the most demanding audiophiles. With its clean sinewave output (typically < 1%THD) and with virtually no change in amplitude due to input voltage fluctuations and output load transients, audio equipment will always function with optimal performance. Because the output of the X-5 regulates so well, another advantage to the audiophile is that other equipment powered by the X-5, such as HDTVs and DVRs, will not introduce noise or distortion to the audio output via the common power connection.
Additionally excellent EMI filtering on the input and output of the X-5 prevents RFI noise from being injected into the audio output.
Another important feature for audiophiles is the high output surge current capacity (150 Amps) of the X-5. This capability to source high surge currents with minimal distortion of the output voltage results with crisp high volume audio transients.
Frequently overlooked is the importance of PFC for noise free operation of audio equipment. Because PFC eliminates voltage and current distortions on the input power leads to the X-5, this potential source of audio noise is virtually non-existent.
The X-5 has sealed, solid-state electronics that protect against humidity and dust, ensuring reliability and a long product life. An External Fan automatically cools the sealed electronics whenever the load exceeds 5 Amps or when environmental factors exceed operating temperature.
Not only will electrical equipment perform better, but the X-5 also acts as an advanced voltage regulator, which fully protects equipment against voltage irregularities, such as under INPUT voltage as low as 180Vac and over voltage as high as 265Vac and provides an appliance with inrush surge protection of up to 150 Amps.
Audible alarms notify overload, short circuit and temperature while in addition; an external LED provides visual notification of overload and temperature status.
The X-5 not only meets the stringent standards of the UL and FCC in the USA, but also meets International Safety Standards.

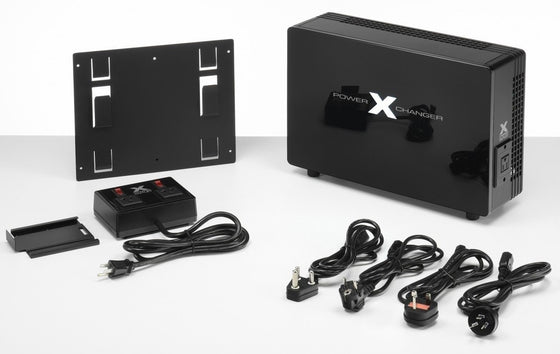

Wall Mount, Extension Outlet, (4) Input Cord Type F, G, I, M
|Output Current-Amps @ 60Hz||5A|
|Voltage Regulation||± 2% From Setpoint|
|Output Frequency||60Hz (Auto-Synchronized to Mains)|
|Voltage Waveform||Sine Wave|
|Output Distortion (Resistive Load)||<2%|
|Output Distortion (Reactive Load)||<3%|
|Non-Linear Peak Current for 30 sec.||40A|
|Total Harmonic Distortion||< 3% at 100% Linear Load|
|Output EMI Filter||150Khz – 30Mhz|
|Output RFI Filter||30Mhz – 1000Mhz|
|Over Current Protection||Over Load Alarm Level: 100% ~ 135%
(alarm after 1 minute delay, shutdown after 1 minute alarm)
Over Load Shutdown Level: 136%
(shutdown after 2 second delay)
|Short Circuit||Pulsating Type, 40A Peak
Auto-Restart time: 30 seconds
|Maximum Continuous Load||600W|
|Maximum Peak Load||1000W|
|Input Frequency||46Hz ̴ 65Hz|
|Noise Filtering||Full-Time EMI/RFI Filtering|
|Input EMI Filter||150Khz -30Mhz|
|Input RFI Filter||30Mhz – 1000Mhz|
|Over Current Protection||By Re-Settable
Over Current Protector
|Voltage Range||180Vac ̴ 265Vac|
|Power Factor||> 0.95|
Over Load Alarm:
Continuous alarmShort-Circuit Alarm:
1 beep every 2 secondsThermo Alarm:
Every other 2 seconds, 32 beeps in 2 seconds
|Inrush Surge Capacity||<150A|
|Voltage Interruption Ride Through||30mS|
X blinks every 4 secondsOver-Temperature:
X blinks every 2 seconds
|Environmental and Safety|
|Operating Temperature||Up to 2000 Meters:
0° to 45°C
(32°F to 113°F)
|Transit/Storage Temp||-15°C to 60°C
(5°F to 140°F)
|Relative Humidity||5 – 95% Non-Condensing|
|Operating Altitude||0 ~ 3000 Meters|
|Moisture Sensitivity||Sealed Electronics|
|External Cooling Fan Control||Auto on/off, controlled by heat sink temperature & load level|
|41.50 × 27.50 × 10.00 cm
16.34 × 10.83 × 3.94 in
|Net Product Weight
|58.00 x 30.00 x 54.00 cm
22.83 x 11.81 x 21.26 in
|Shipping Weight||15.50 kgs
|Warranty||2 Years, Full Replacement|
|Quality Control Standard||ISO9001|
|International Approvals||UL-ULus (CCN: QQFU/7) Power Units Other Than Class 2,
UL 1012, Seven Edition, October 14, 2008
UL-cUL: CAN/CSA-C22.2 No. 107.1-01, September, 2001
DEMKO-CB IEC60950-1:2005+A1:2009+A2:2013 (Ed. 2.2)
TUV/SUD-CB IEC 60335-1:2010+A1:2013 (Ed. 5.1)
FCC Part 15: subpart B
